Definitions
BIM functions as a collaborative, continuously updated, and centralized CAD system where all project-related data is stored in a single virtual environment. This data-rich 3D model not only represents the physical aspects of a building but also incorporates functional characteristics, making it a powerful tool for design, construction, and facility management.
By being cloud-based or network-accessible, BIM allows real-time collaboration among architects, engineers, contractors, and other stakeholders, ensuring that everyone is working with the most up-to-date information, reducing errors, and improving efficiency.
In short, BIM is a cooperative, dynamically updated and centralized CAD where all information (usually in a form of a virtual, data rich 3D model reflecting physical and functional characteristics of places) is stored in one virtual place accessible via internet or network by all parties involved.
IDRAWPRO Staff
BIM in shop drawings, a new era of efficiency in construction.
In recent years, Building Information Modeling (BIM) has gained significant traction in the shop drawing preparation process. Companies like IDRAWPRO has been an early adopter of BIM, recognizing its numerous advantages, including enhanced coordination and design development, improved clash detection and avoidance, and more efficient time and cost management.
One of the most valuable features of BIM in shop drawing preparation is early clash detection and avoidance. The ability to virtually coordinate the work of different trades is essential for a successful and efficient construction process, minimizing errors and ensuring seamless project execution.
Main benefits of using BIM for shop drawings
Some key advantages of using BIM for shop drawings include:
- Enhanced Accuracy – BIM models integrate detailed geometry and metadata, reducing discrepancies and rework.
- Improved Coordination – Clash detection features help identify conflicts between different building systems before construction begins.
- Better Visualization – 3D models provide clearer representation compared to traditional 2D drawings.
- Faster Revisions – Changes in the BIM model automatically update associated drawings, reducing time spent on manual modifications.
- Streamlined Fabrication – Fabricators can extract precise measurements and specifications directly from the model.
- Collaboration & Integration – BIM fosters seamless collaboration between architects, engineers, and contractors by centralizing project data.

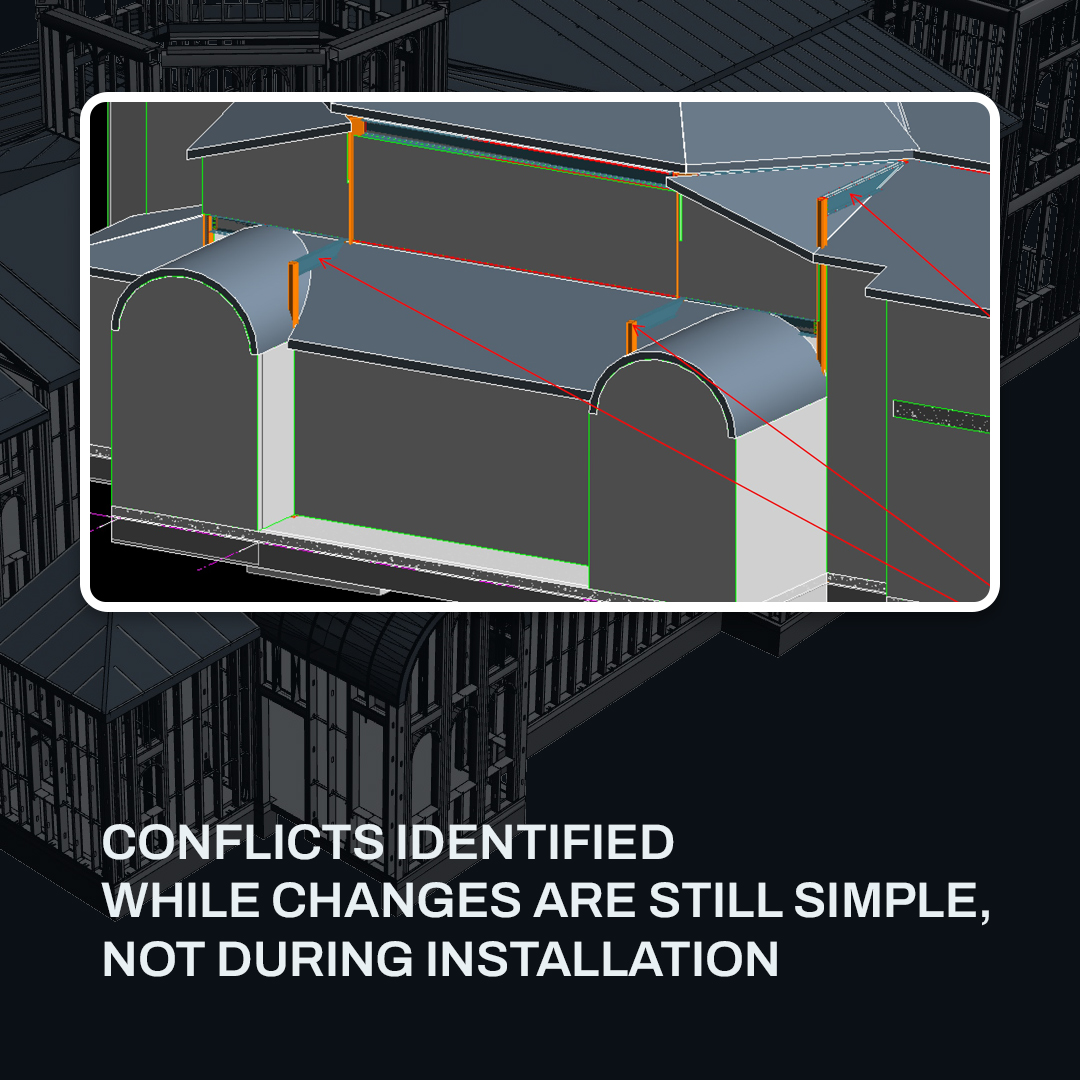

Figure 1 below illustrate the process of shop drawings preparation using BIM to coordinate between structural steel and metal studs installation by IDRAWPRO team, clash detection was observed and customer as well as the design team were alerted about potential problems.
Detailed Material Lists
Another major advantage of using BIM in shop drawing preparation is the ability to generate detailed material lists directly from the 3D model. This feature allows for efficient and swift material procurement, helping to streamline logistics, reduce waste, and optimize costs.
A clear blueprint
BIM also enables the creation of clear and comprehensive installation drawings, incorporating both 2D and 3D views. These detailed visualizations provide precise guidance for quick and efficient construction, reducing ambiguity and improving on-site productivity.
Complete your project successfully!
Learn more about this project and how you can benefit using our services for your upcoming project on IDRAWPRO.COM
